FLM NDP panorama system.

FLM PANO-System

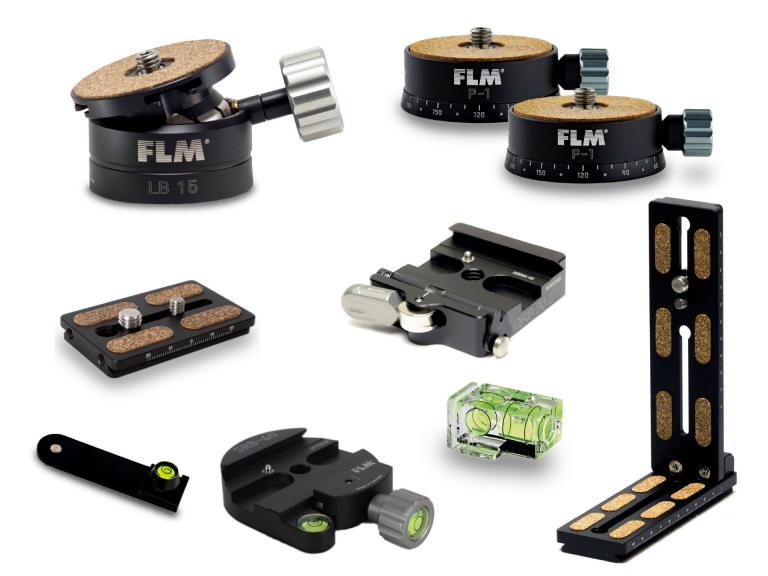

LB-15, 2x P-1, QRB-50, SRB-60, QRP-70, L-angle set and HSA-80 with 2-axis bubble level

Levelling system with nodal point correction option for aligning the camera in panoramic shots. The system, which consists of several standard components, allows levelling by +/- 15°, rotation around the vertical axis (horizontal), rotation around the transverse axis (vertical) and shifting of the mounting angle (L-angle) transverse to the optical axis as well as the camera in the direction of the optical axis. The plate of the LB-15 is clamped without misalignment thanks to the patented clamping technology.

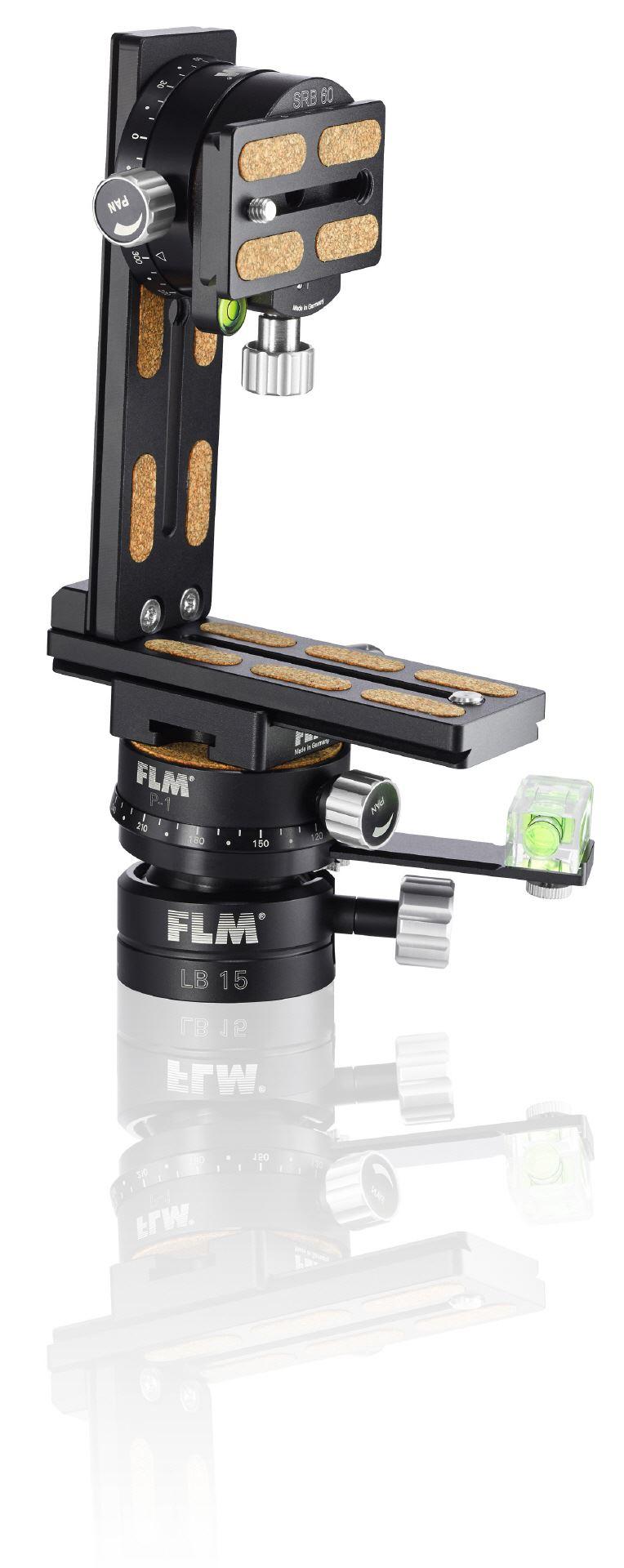

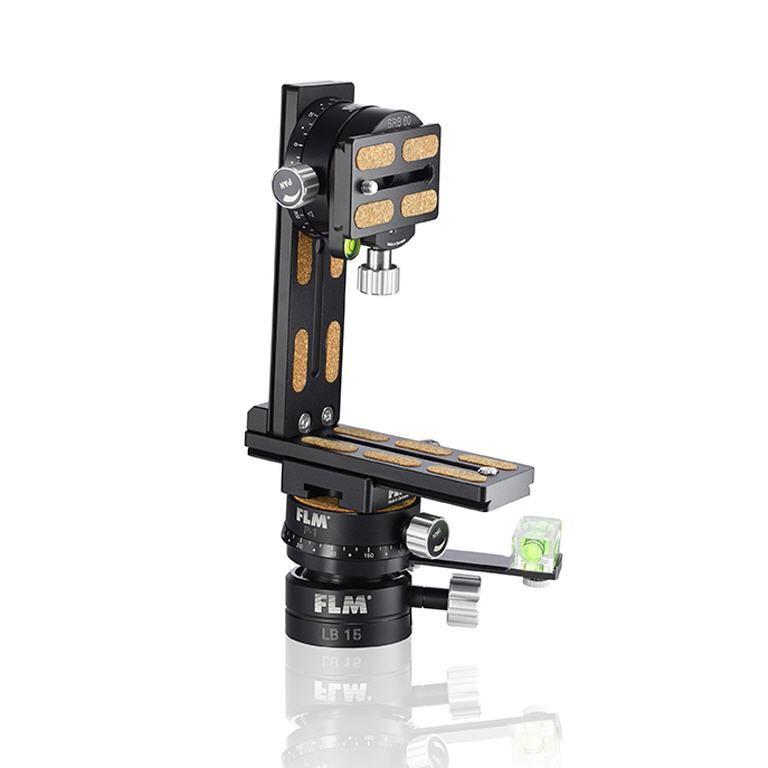

The mounting plate of the LB-15 is laterally equipped with the FLM hot shoe adapter HSA and a 2D bubble level. A P-1 is mounted on the plate. The L-bracket is then attached to this by means of a QRB-50. Another P-1 is mounted on the vertical leg and equipped with an SRB-60. The camera is equipped with the enclosed QRP-70 photo plate and can then be mounted on the SRB-60 and moved in the direction of the optical axis.

Set contents

  • 1x LB-15 (12 60 901)

  • 2x P-1 (12 48 904)

  • 1x QRB-50 (12 50 901)

  • 1x SRB-60 (32 61 901)

  • 1x QRP-70 (12 70 902)

  • 1x L-angle set (12 16 901)

  • 1x HSA-80 with BL-1 round shape (12 21 902)

  • 1x 2-axis spirit level (12 02 901)

  • Type: PANO NDP system

  • Camera mount: 1/4 inch +3/8 inch

  • Bottom thread: 3/8 inch

  • Max. Load capacity: 30 kg

  • Total weight of all components: 1116 g

  • EAN number: 4260231032690

Component LB-15

  • Type: LB-15

  • Camera mount: 1/4 inch +3/8 inch

  • Bottom thread: 3/8 inch

  • Dimensions: 60 x 45 mm (D x H)

  • Max. Load capacity: 30 kg

  • Weight: 220 g

  • EAN number: 4260231030320

Component P-1

  • Type: P-1

  • Camera mount: 1/4 inch +3/8 inch

  • Bottom thread: 3/8 inch

  • Dimensions: 65 x 21 mm (D x H)

  • Weight: 180 g

  • Max. Load capacity: 60 kg

  • EAN: 4260231030078

Component QRB-50

  • Type: P-1

  • Camera mount: 1/4 inch +3/8 inch

  • Bottom thread: 3/8 inch

  • Dimensions: 65 x 21 mm (D x H)

  • Weight: 180 g

  • Max. Load capacity: 60 kg

  • EAN: 4260231030078

Component SRB-60

  • Type: SRB-60 II

  • Base thread: 3/8 inch

  • Dimensions: 60 x 15 mm (diameter x height)

  • Max. load: 45 kg

  • Weight: 93 g

  • EAN number: 4260231030832

Component QRP-70

  • Type: QRP-70 (CNC)

  • Camera mount: 1/4 inch + 3/8 inch

  • Dimensions: 70 x 44 x 10 mm (L x W x H)

  • Weight: 56 g

  • Max. Load capacity: 60 kg

  • Weight: 56 g

  • EAN number: 4260231030283

Component L-bracket set

  • Type: L-Bracket

  • Camera mount: 1/4 inch + 3/8 inch

  • Dimensions: 160 x 44 x 130 mm (L x W x H)

  • Max. Load capacity: 60 kg

  • Weight: 261 g

  • EAN number: 4260231030313

Component 2D vial

  • Type: 2 Axis Bubble Level

  • Dimensions: approx. 33 x 19 x 19 mm ( L x W x H)

  • Weight: 11 g

  • EAN number: 4260231030405
